NOTE - Initial kit order is in - shipment expected in January 2021

Released in 2019 - The redesigned Mistral 2.0 combined the innovative G56 V-LINK rear suspension technology with a fully adjustable pan car styled composite front suspension and a rear wing to chassis mount.  In its first few races it was immediately a hit scoring a strong A-main appearances during the 2018/2019 ETS season.

Chassis-

USA SPEC 2.5mm Short Wheelbase (SWB) Carbon Fiber Chassis is included within this kit.  The SWB chassis produces an overall wheelbase of 265mm.

Front Suspension-

The front end features a traditional pan car design allowing for camber adjustment by turnbuckles, caster adjustment with clips or shims and 3 configurations of dynamic caster.

Rear Suspension-

The V-LINK controls the roll with two links and side links instead of the center pivot ball. A total of 6 types of roll centers can be selected, and roll centers can be set under the main chassis. This was not possible with the conventional center pivot ball type chassis.

As shown in the figure, the roll center height can be changed by changing the angle of the V-LINK. When it is set to the lowest position (A1 in the figure), it can be set 5 mm lower than the general center pivot. Of course, it can be set to the same height as the center pivot. Lowering the roll center generally increases the mechanical grip, and the V-LINK is smoother because the roll movement is not restricted to the center pivot, and the 4 wheel steering (4WS) effect that can be adjusted by the length and height of the side link is more effective than ever.

Please note:

  • Lower main chassis and pod plate are carbon fiber

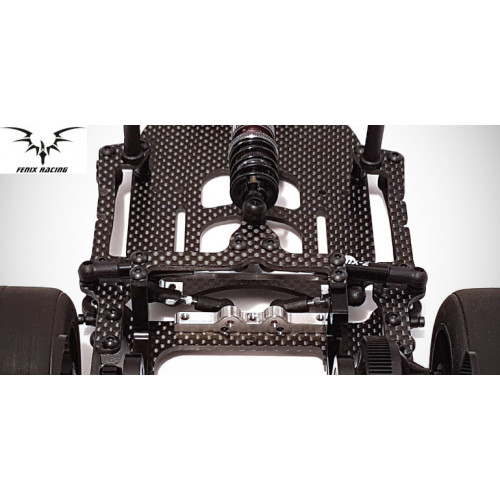

  • The photograph is a pre-assembled complete example
  • This product does not include body, RC mechanism, battery, motor, tires, wings and wheels
  • This chassis configuration with the SWB chassis meets UF1 racing regulations for 270mm wheelbase or less

Fenix Mistral 2-0 1/10th F1 Racing Kit USA SPEC (Carbon Chassis)

  • Brand: Fenix Racing
  • Product Code: MIS003-SWB
  • Availability: 1
  • $397.00


Tags: 1/10th scale, Formula 1, F1
