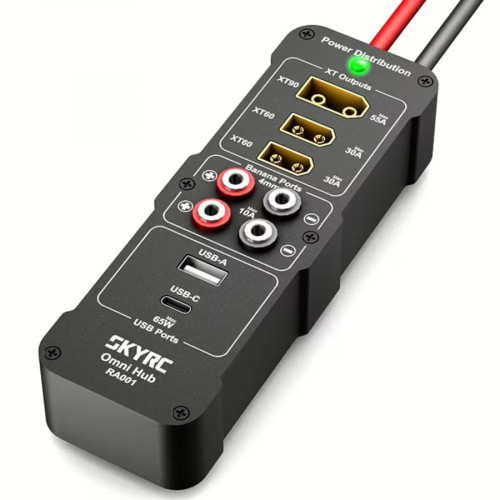

SkyRC Omni XT90 Power Distribution Hub

The SkyRC Omni XT90 Power Distribution Hub is the ideal power distribution solution. With its XT90 input and a maximum continuous power output of up to 2000 W, the Omni Hub can power multiple chargers, batteries and devices simultaneously – cleanly, efficiently and via a single, compact setup. Thanks to its practical power strip design, the hub is equally at home on the workbench or in your rucksack when you’re on the go. In addition to the high-current outputs (XT90, XT60, 4mm banana sockets), the hub also offers a USB-C fast-charging output with up to 65 W as well as a USB-A output.

Several integrated protection mechanisms ensure a safe and stable power supply at all times.

Technical specifications :

Input voltage :    8–36V
Max. input current :    55A
USB-C output :    5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A – max. 65W
USB-A output :    5V/3A, 9V/2A, 12V/1.5A – max. 18W
USB-C + USB-A simultaneously :    5V/3.6A – max. 18W
XT90-F output :    max. 55A
XT60-F outputs :    max. 30A
4mm banana sockets :    max. 10A
LED indicator :    Green (Operating) / Off (Standby)
Dimensions :    151 x 50 x 29.5mm
Weight :    310g
